WALD Illima — ILLIMA I

I 12F

The WALD ILLIMA I 12F is the 2-piece forged wheel of the ILLIMA series, available in 22, 21 and 20 inch diameters with a wide range of width options.

22 | 21 | 20 Inch — 2 Piece Forged

Finish

Product overview

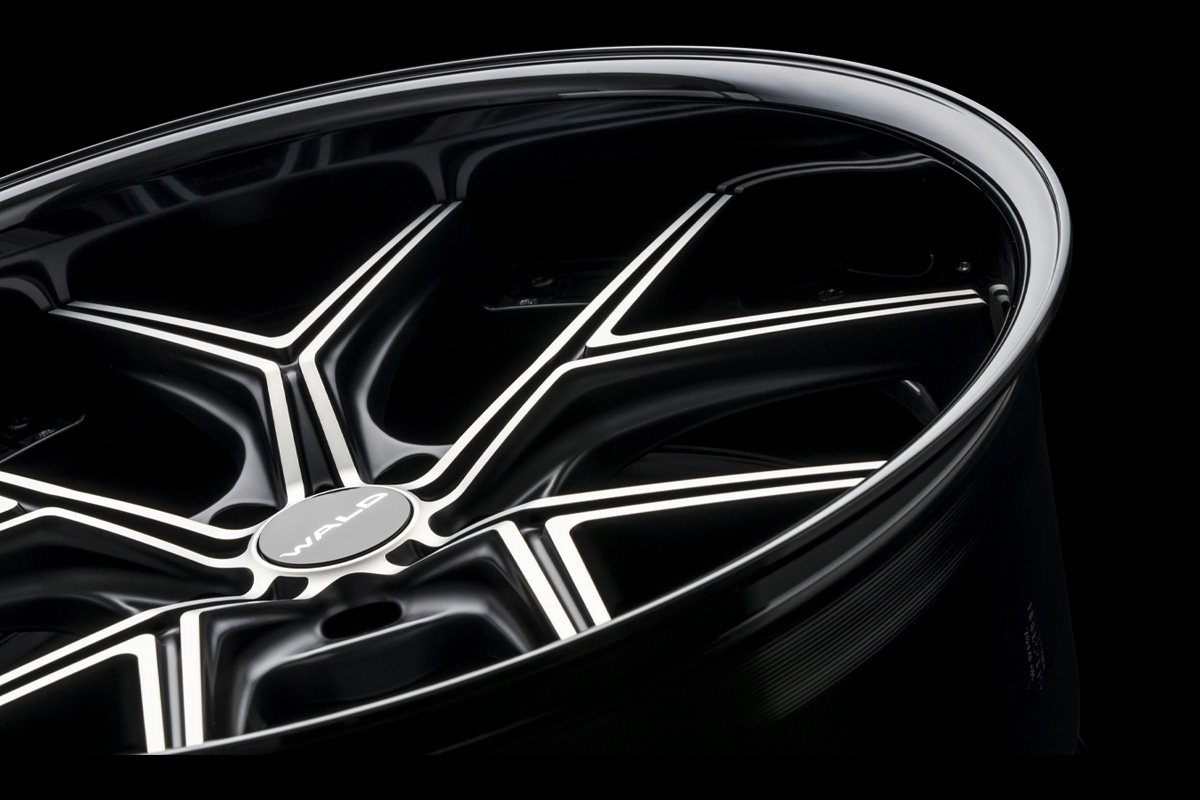

ILLIMA Series is defined by WALD's trademark Double Arrow Spoke Design, created to fulfil the ideal wheel specification for owners who demand a distinctive and sophisticated appearance from their vehicle.

Designed particularly with high-end vehicles in mind, the ILLIMA 2-Piece Forged combines large-diameter proportions with a wide range of width options, allowing the wheel to be tailored to a variety of vehicle applications.

The I 12F is available in 20″, 21″ and 22″ diameters, with widths extending up to 12.5J in 20 and 21 inch applications, and up to 11.5J in 22 inch applications.

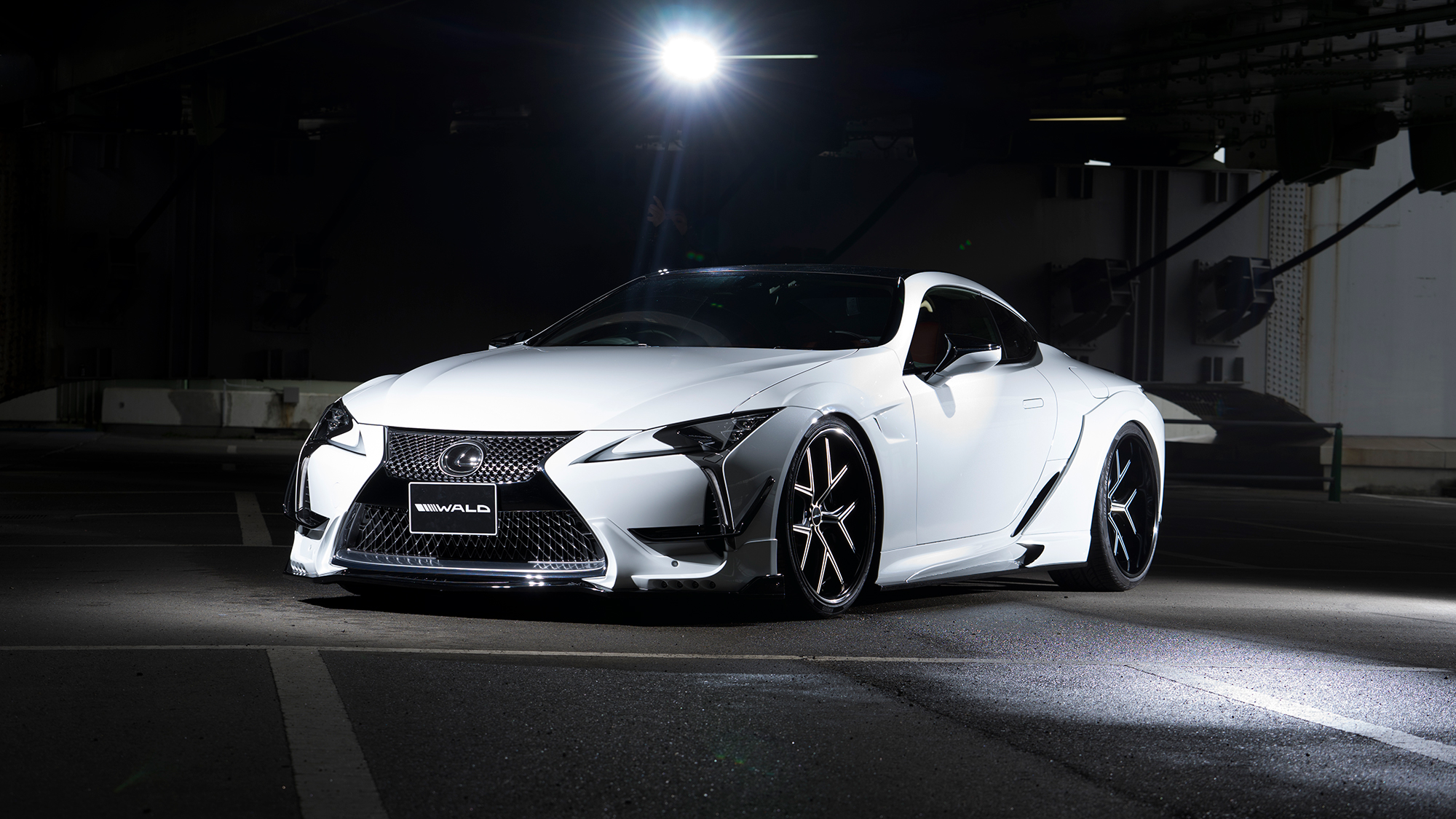

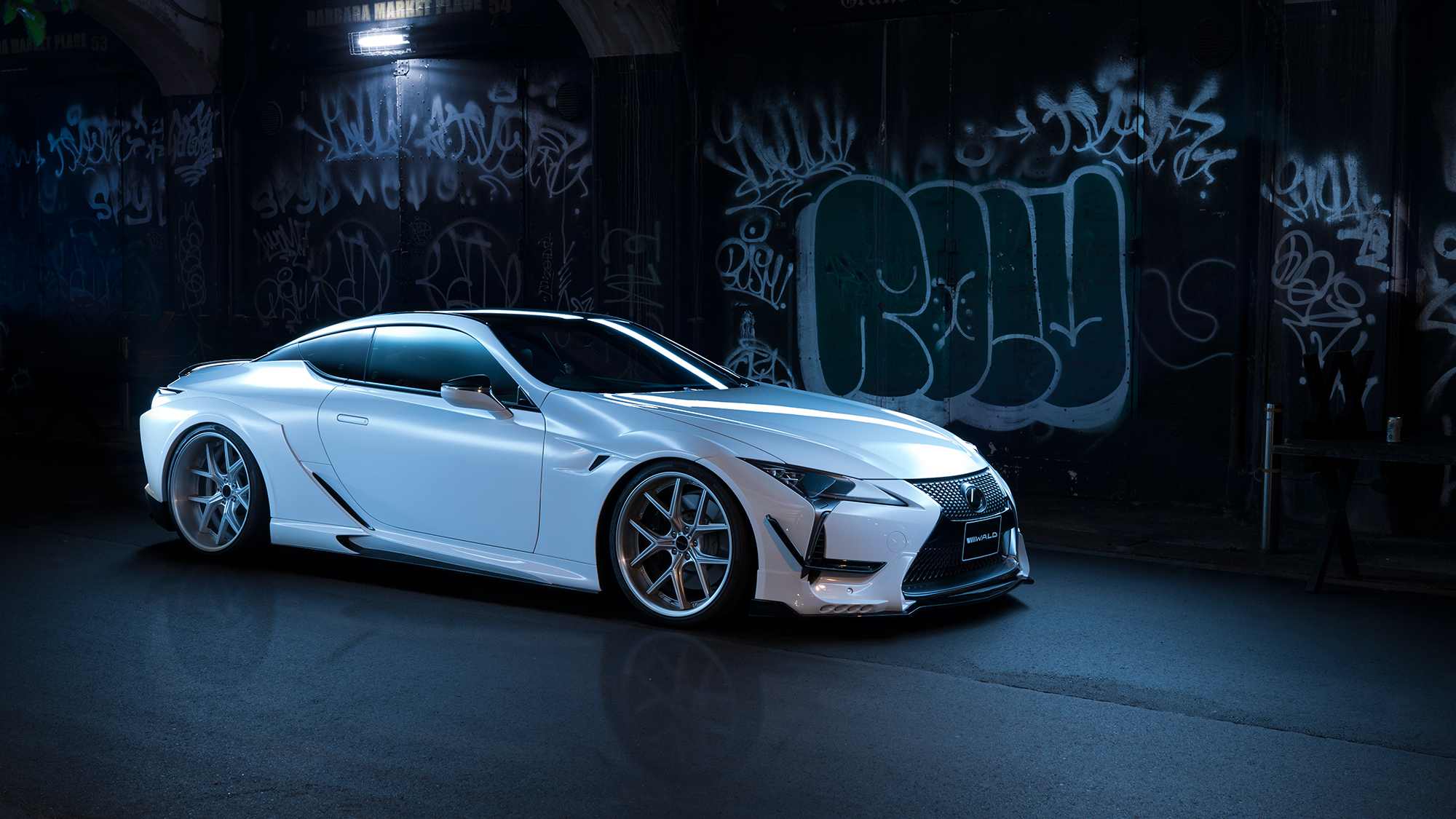

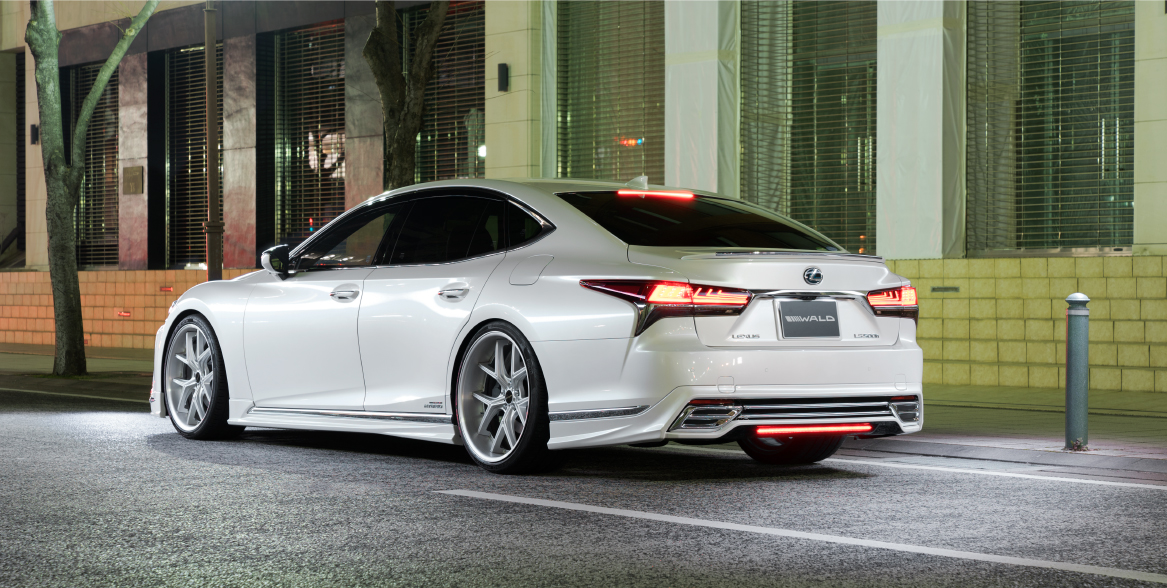

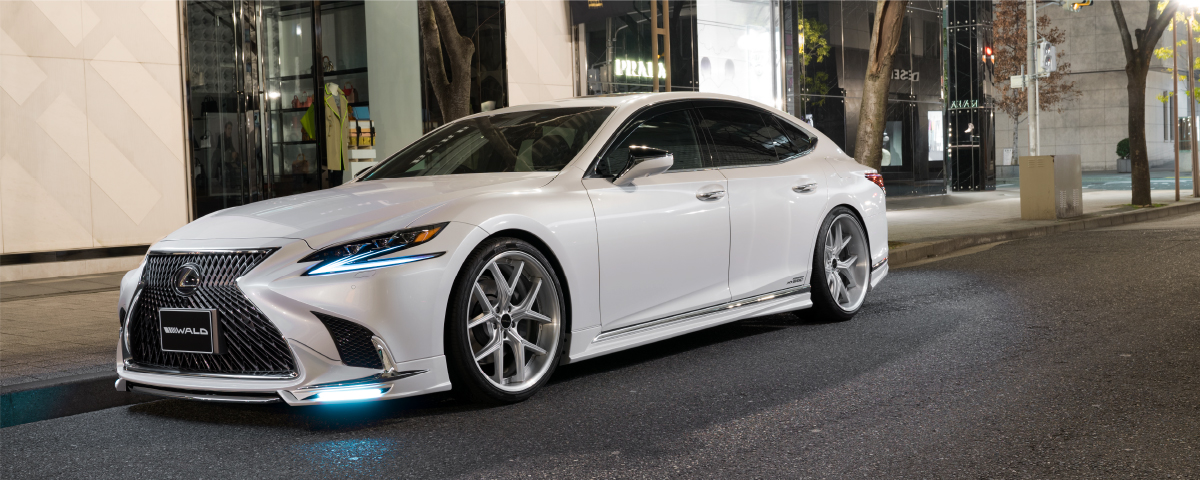

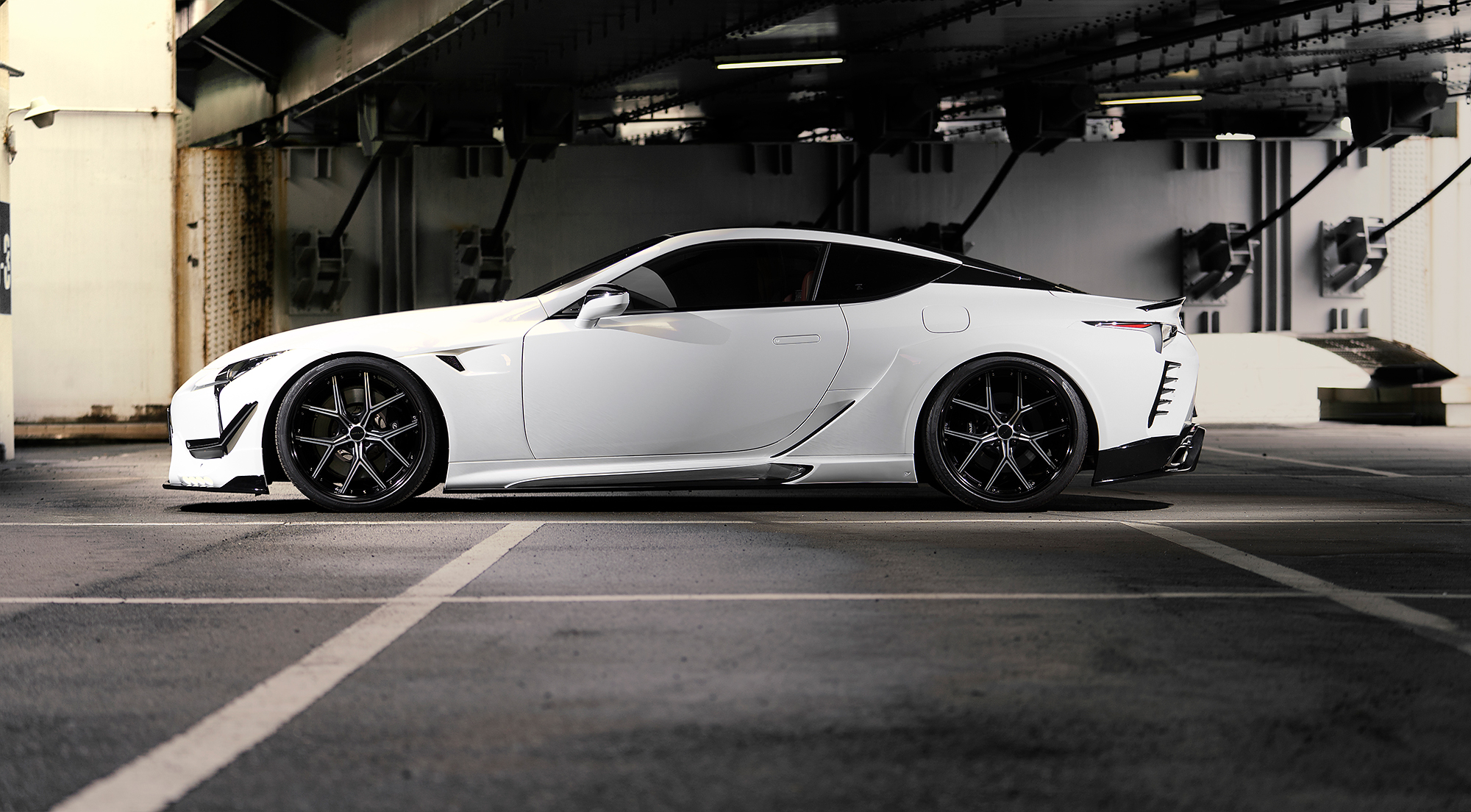

The I 12F configuration is particularly suited to vehicles such as the Lexus LS and Lexus LC, where the deeper wheelhouse allows the wheel's proportions and stance to be fully expressed.

Bespoke finishes are also available upon request, allowing the ILLIMA 2-Piece Forged to be specified to suit individual vehicle builds.

Specification

Wheel family: WALD Illima
Available diameters: 22 inch · 21 inch · 20 inch
Available finishes: ILLIMA Silver with Brushed Rim · ILLIMA Black Polish with Black Alumite Rim · ILLIMA Matte Black Polish with Matte Black Alumite Rim
Construction: 2 Piece Forged
Manufacturing: Forged 2-piece construction

Enquire

Enquire about this wheel

Finishes & sizes

22 | 21 | 20 inch

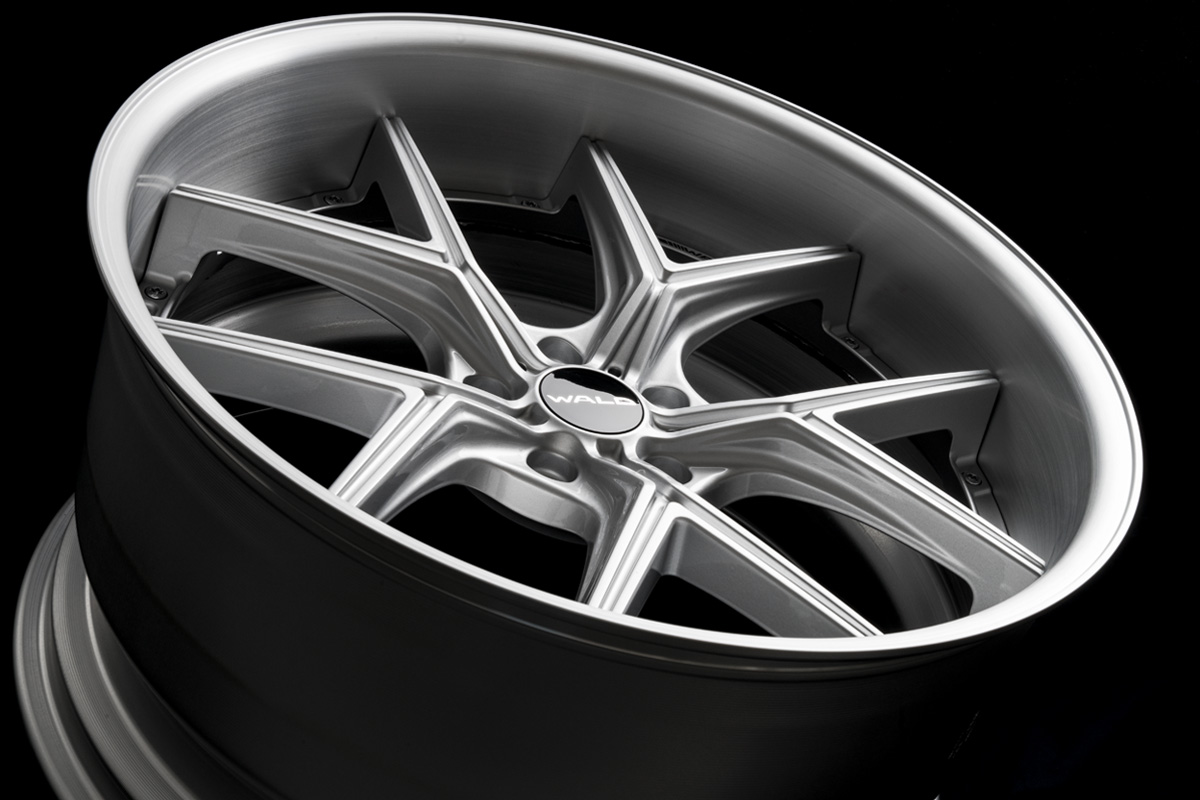

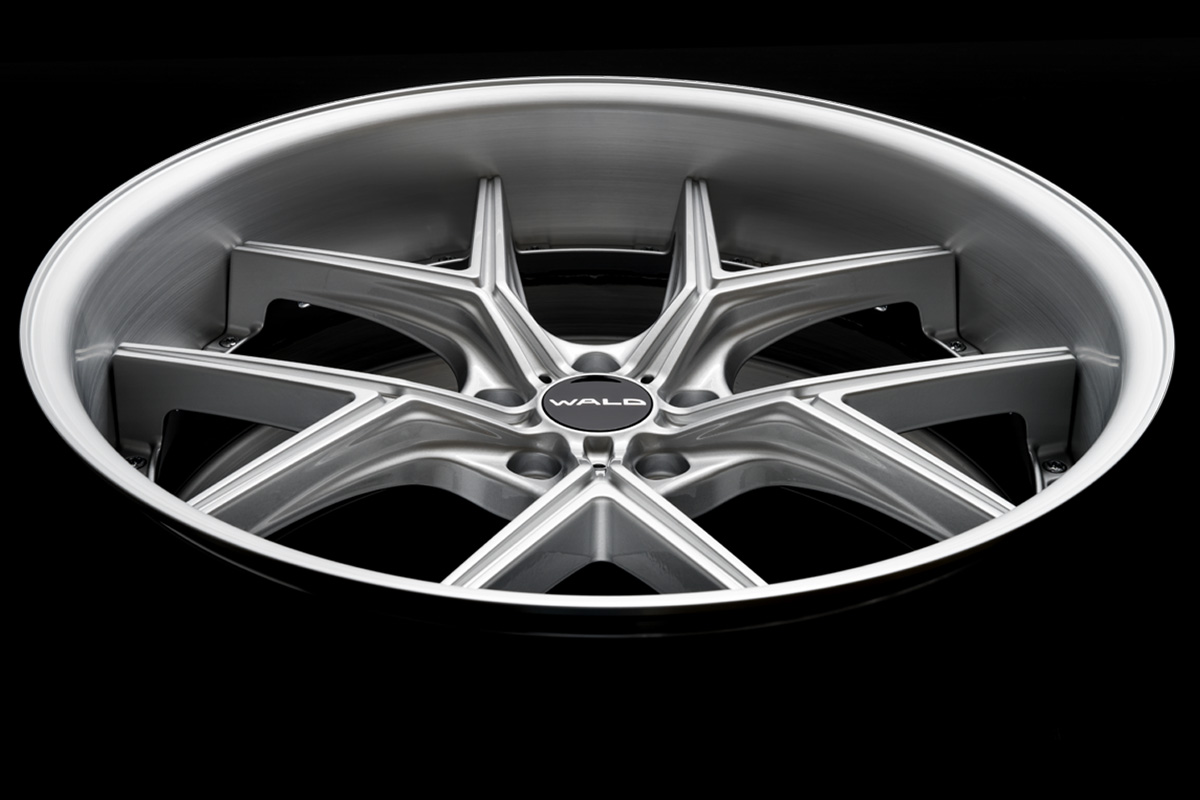

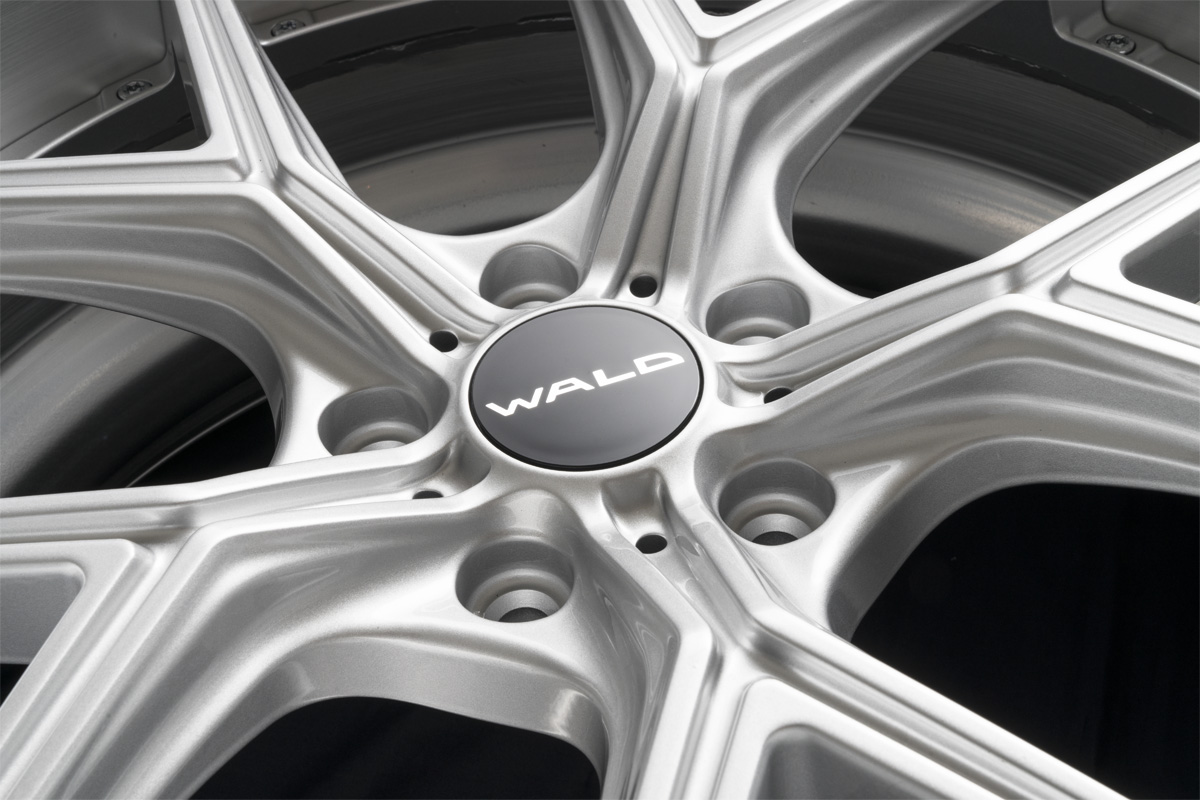

ILLIMA Silver with Brushed Rim
Forged 2-piece construction
22 | 21 | 20 inch

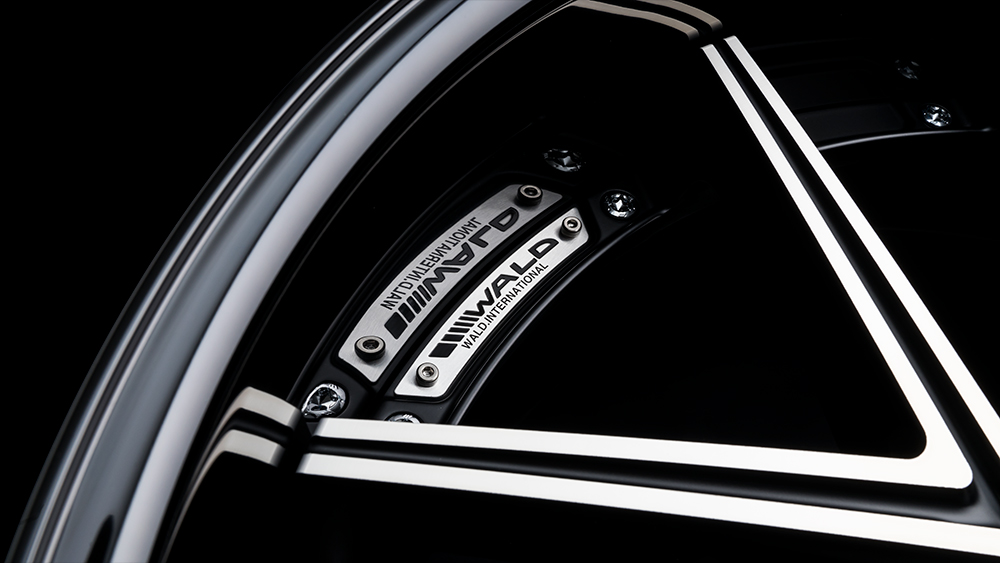

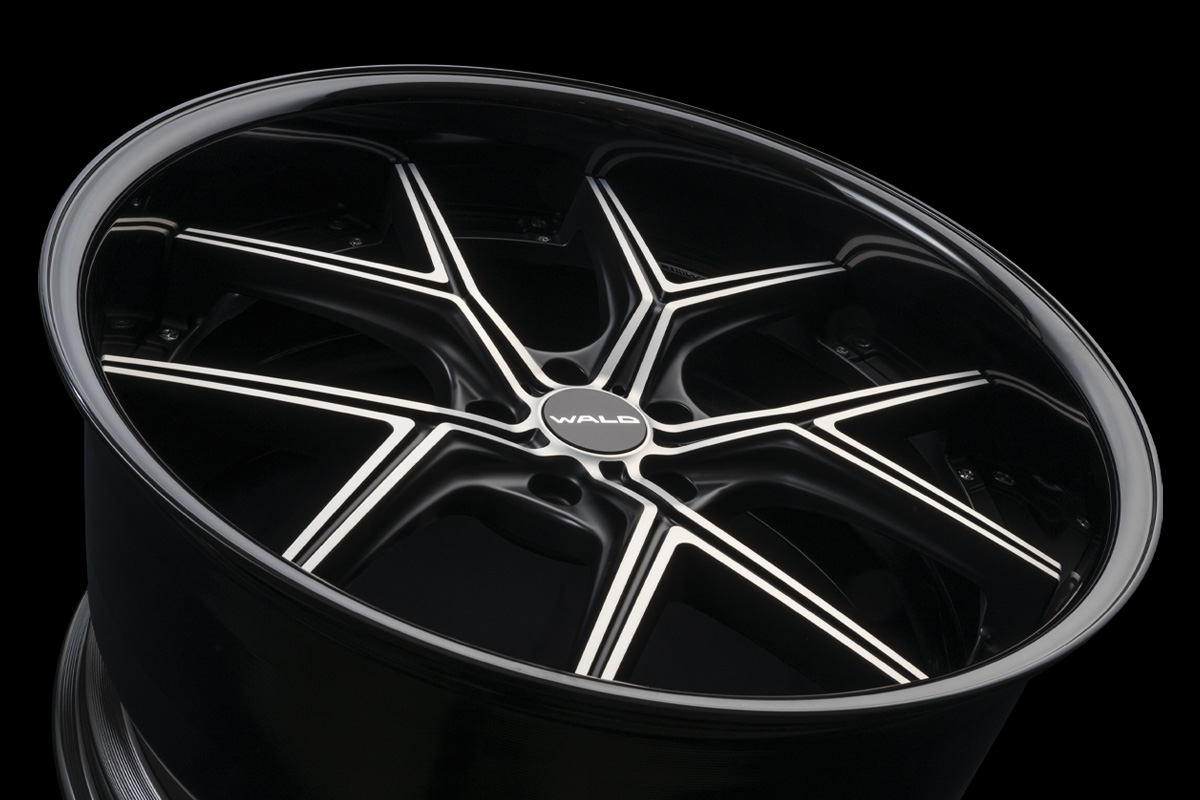

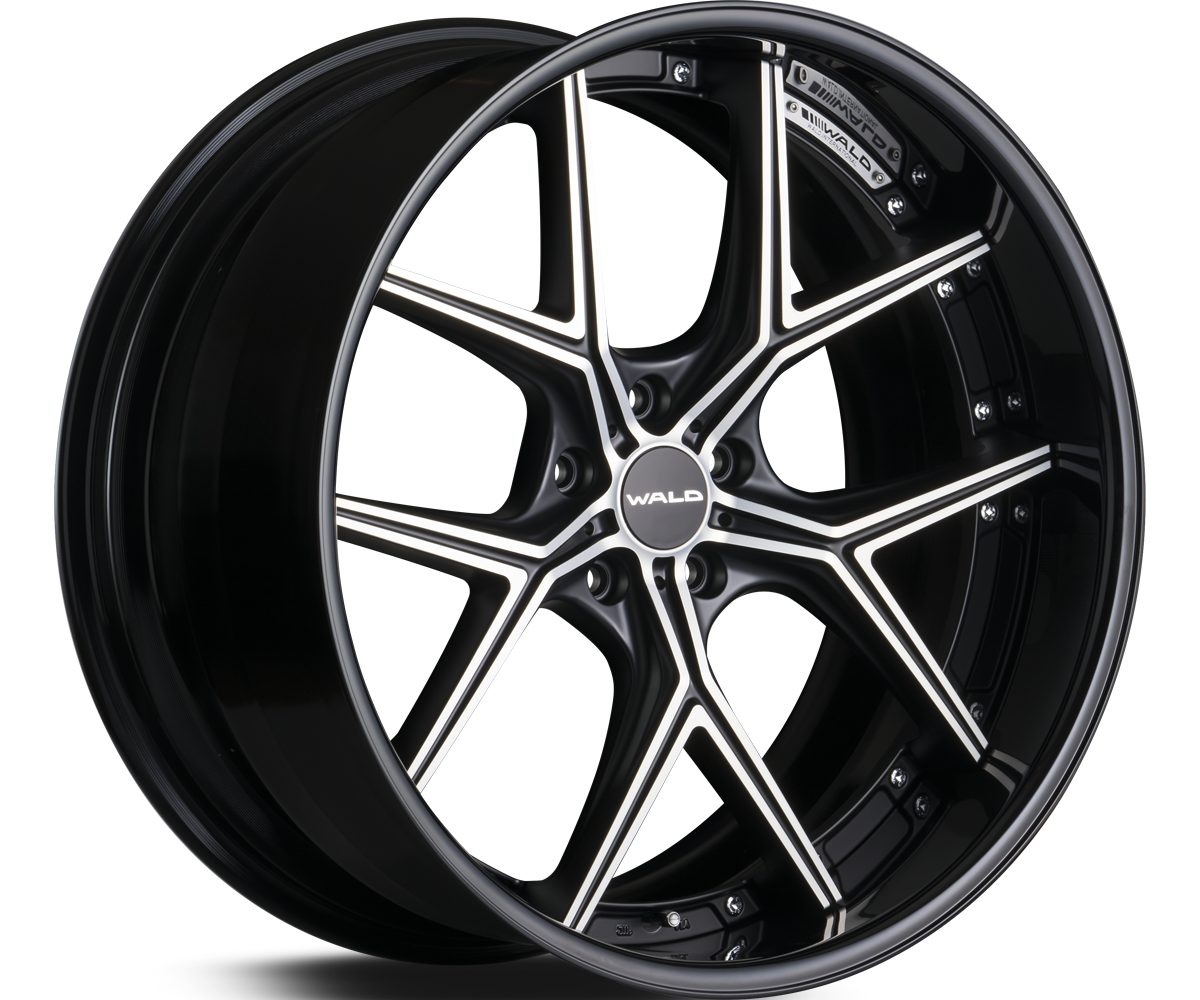

ILLIMA Black Polish with Black Alumite Rim
Forged 2-piece construction
22 | 21 | 20 inch

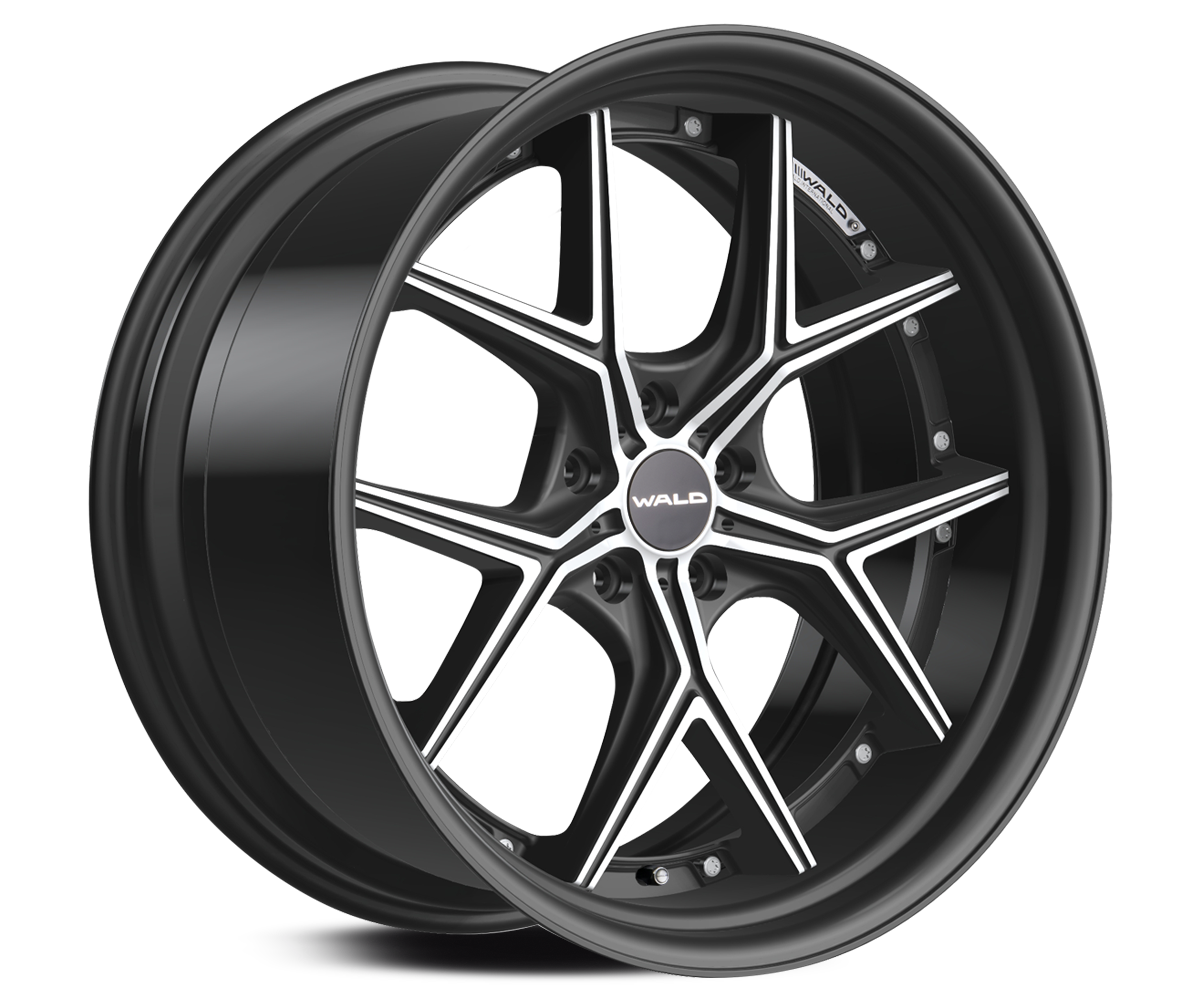

ILLIMA Matte Black Polish with Matte Black Alumite Rim
Forged 2-piece construction

Available sizes

22 × 8.5J – 22 × 11.5J
Minimum to maximum width
21 × 8.5J – 21 × 12.5J
Minimum to maximum width
20 × 8.5J – 20 × 12.5J
Minimum to maximum width

Application / fitment

PCD	Centre bore
5/114.3	75φ
5/112	75φ
5/120	75φ
5/108	75φ

Vehicle-specific fitment, offset and clearance should be confirmed before ordering. Not every size, PCD or width is suitable for every vehicle listed. Please contact Premier Auto Design for further information.

Bespoke finish options

More bespoke finishes are available upon request, allowing the ILLIMA 2-Piece Forged to be specified to suit individual vehicle builds.

Looking for a specific disc and rim finish combination? Contact Premier Auto Design to discuss bespoke I 12F finish options.

Discuss bespoke finishes

Vehicle application

I 12F — 22 inch

22 × 8.5J up to 22 × 11.5J

Size	Finish	Application
22 × 8.5J – 22 × 11.5J	ILLIMA Silver — Brushed Rim	PCD 5/114.3, 5/112, 5/120, 5/108 — 75φ centre bore
22 × 8.5J – 22 × 11.5J	ILLIMA Black Polish — Black Alumite Rim	PCD 5/114.3, 5/112, 5/120, 5/108 — 75φ centre bore
22 × 8.5J – 22 × 11.5J	ILLIMA Matte Black Polish — Matte Black Alumite Rim	PCD 5/114.3, 5/112, 5/120, 5/108 — 75φ centre bore

I 12F — 21 inch

21 × 8.5J up to 21 × 12.5J

Size	Finish	Application
21 × 8.5J – 21 × 12.5J	ILLIMA Silver — Brushed Rim	PCD 5/114.3, 5/112, 5/120, 5/108 — 75φ centre bore
21 × 8.5J – 21 × 12.5J	ILLIMA Black Polish — Black Alumite Rim	PCD 5/114.3, 5/112, 5/120, 5/108 — 75φ centre bore
21 × 8.5J – 21 × 12.5J	ILLIMA Matte Black Polish — Matte Black Alumite Rim	PCD 5/114.3, 5/112, 5/120, 5/108 — 75φ centre bore

I 12F — 20 inch

20 × 8.5J up to 20 × 12.5J

Size	Finish	Application
20 × 8.5J – 20 × 12.5J	ILLIMA Silver — Brushed Rim	PCD 5/114.3, 5/112, 5/120, 5/108 — 75φ centre bore
20 × 8.5J – 20 × 12.5J	ILLIMA Black Polish — Black Alumite Rim	PCD 5/114.3, 5/112, 5/120, 5/108 — 75φ centre bore
20 × 8.5J – 20 × 12.5J	ILLIMA Matte Black Polish — Matte Black Alumite Rim	PCD 5/114.3, 5/112, 5/120, 5/108 — 75φ centre bore
