CLASSIC MESH CM12C

The WALD Classic Mesh CM12C is a 2-piece multi-piece mesh wheel available in 21, 20, 19, 18, 17 and 16 inch, with Reverse Rim and Step Rim configurations and Deep Rim settings up to 12.5J.

2 Pieces — Multi-Piece Wheel · 21″ / 20″ / 19″ / 18″ / 17″ / 16″

2 Pieces — Multi-Piece Wheel (not a 1-piece wheel)

Finish

Product overview

The Mesh-Style-Wheel is inspired by the design of the good old days wheels. However, the total balance of the design is not only for the classic cars, but also suitable for the latest cars.

This two-piece wheel is developed for “16, 18 inch with Reverse Rim” and “17, 19 inch with Step Rim” as a choice. The selectable widest rim size is 12.5J, and it is available to assemble for the over fender size with the Deep Rim.

All the crossing straight spokes stand out the typical “Mesh Design Wheel”, but might be fresh for the latest cars once installing on.

Specification

Wheel family: WALD Classic Mesh
Available diameters: 21 inch · 20 inch · 19 inch · 18 inch · 17 inch · 16 inch
Available finishes: Silver | Cut Alumite Rim · Matte Black | Alumite Rim · Titanium Silver | Cut Alumite Rim · Gold | Cut Alumite Rim · Silver | Alumite Rim · Gold | Alumite Rim
Construction: 2-Piece — Multi-Piece Wheel
Manufacturing: 2-Piece multi-piece assembled construction — Classic Mesh design

Centre cap options

Standard
Flat Centre Cap
Optional

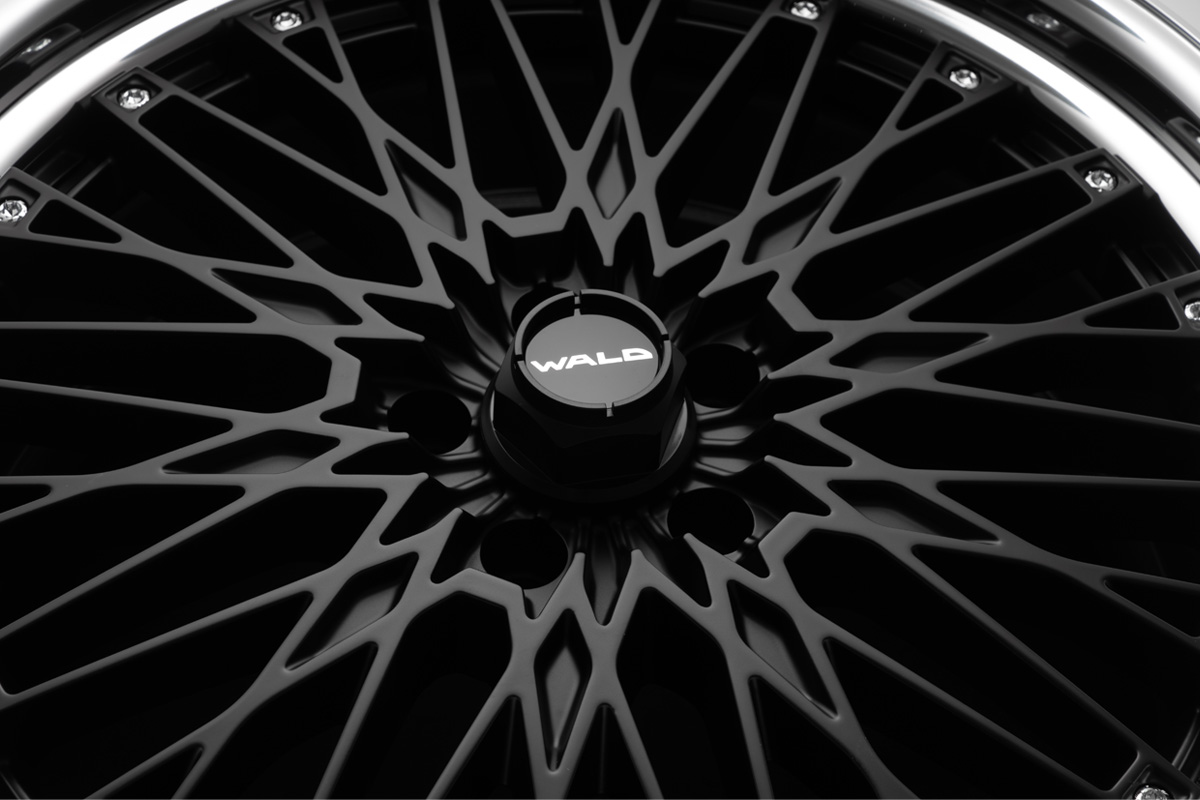

Hex Centre Cap
Optional centre cap — not included as standard.

Enquire

Enquire about this wheel

Finishes & sizes

21 / 20 / 19 / 18 / 17 / 16 inch
Silver | Cut Alumite Rim
2-Piece multi-piece assembled construction — Classic Mesh design
21 / 20 / 19 / 18 / 17 / 16 inch

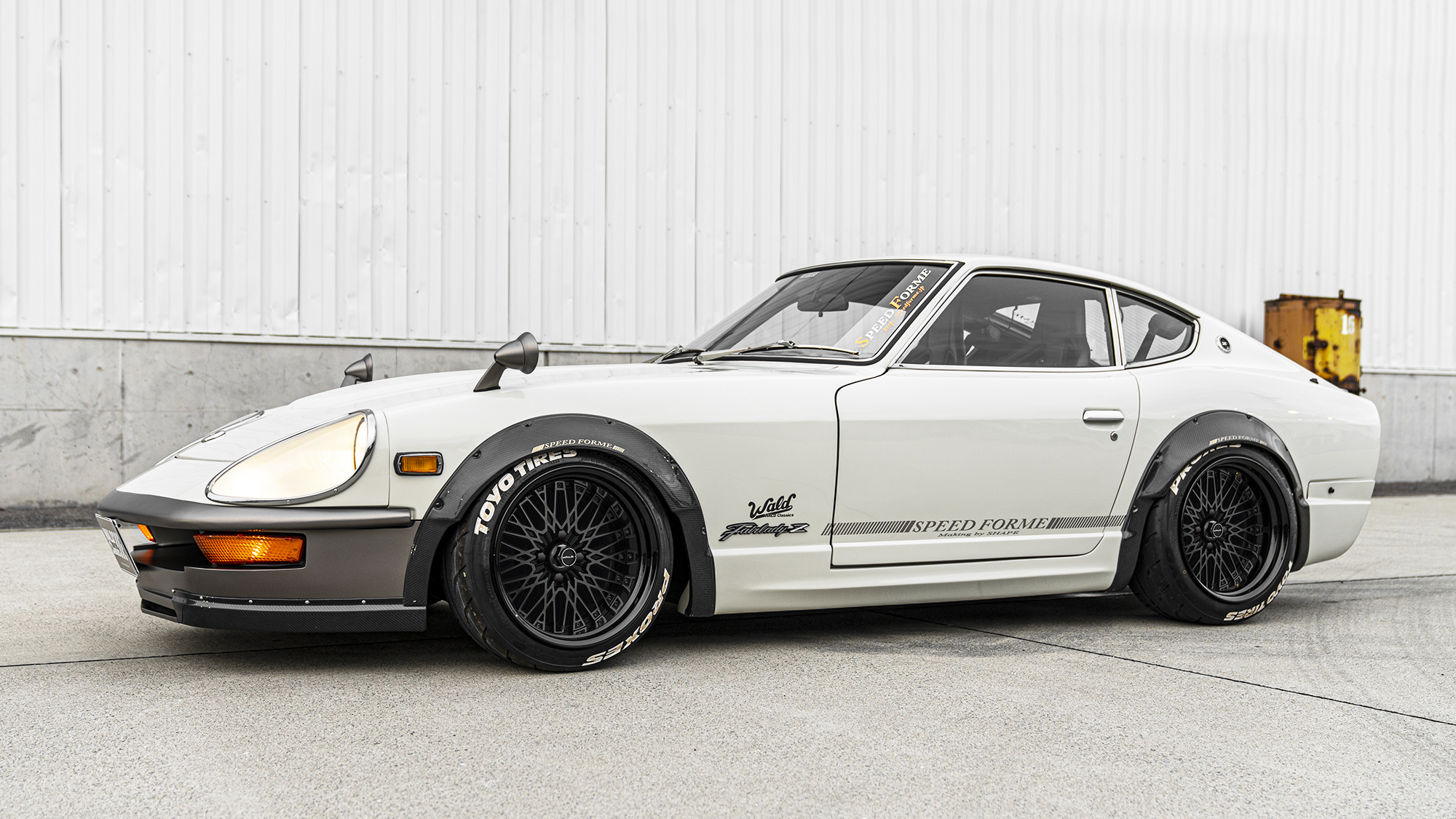

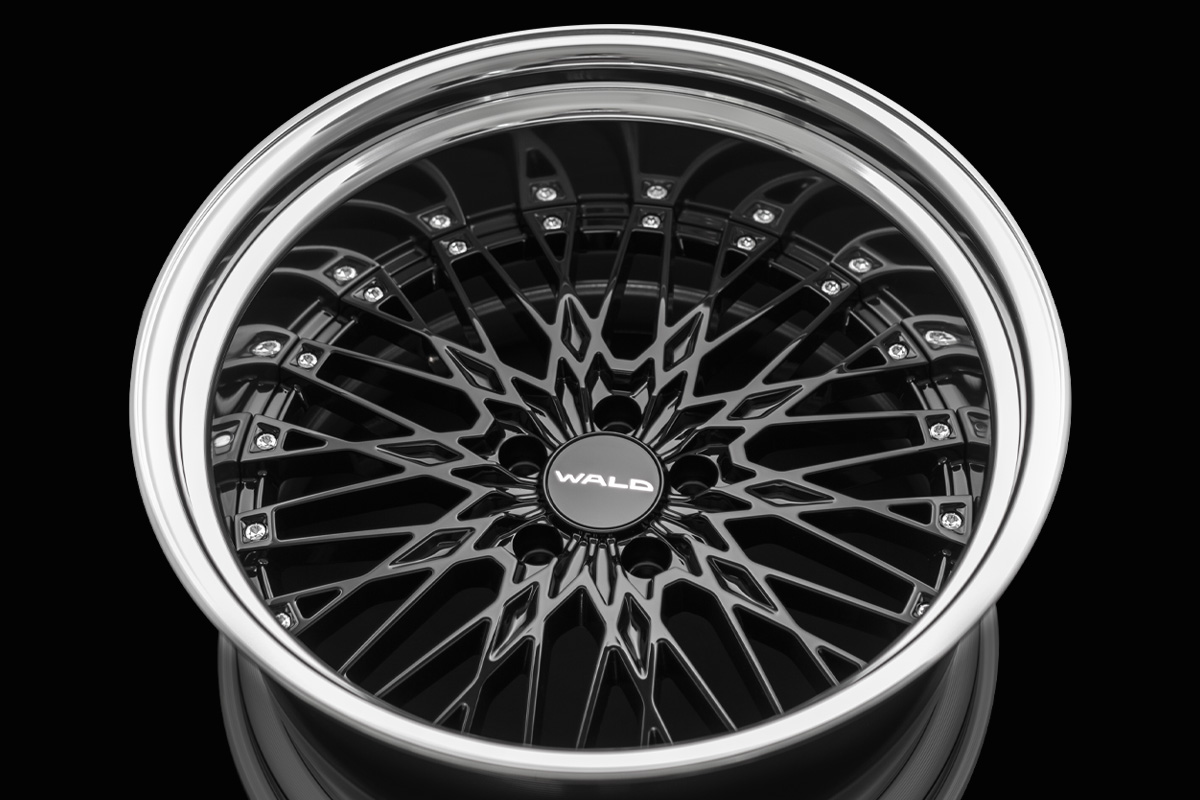

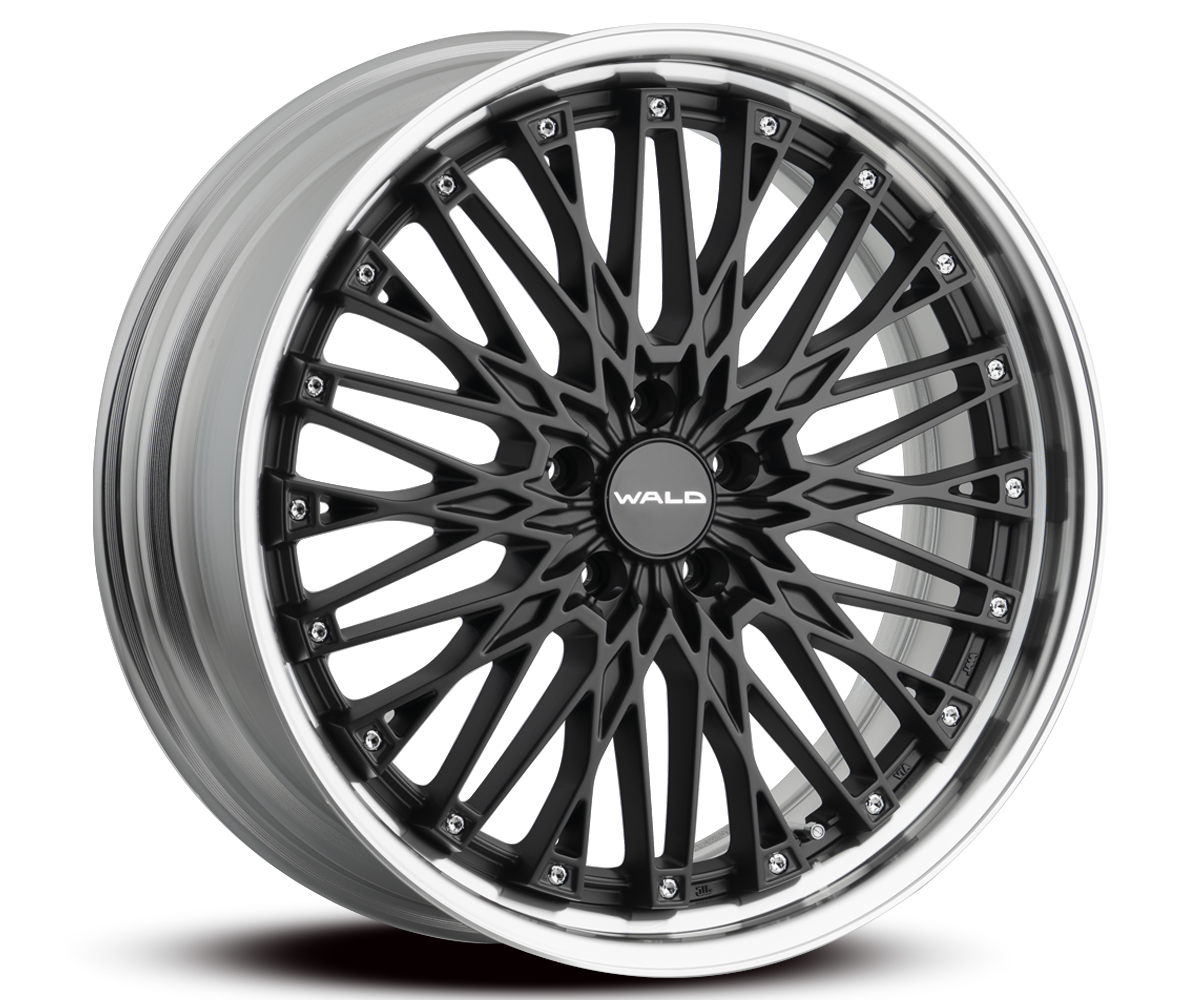

Matte Black | Alumite Rim
2-Piece multi-piece assembled construction — Classic Mesh design
21 / 20 / 19 / 18 / 17 / 16 inch

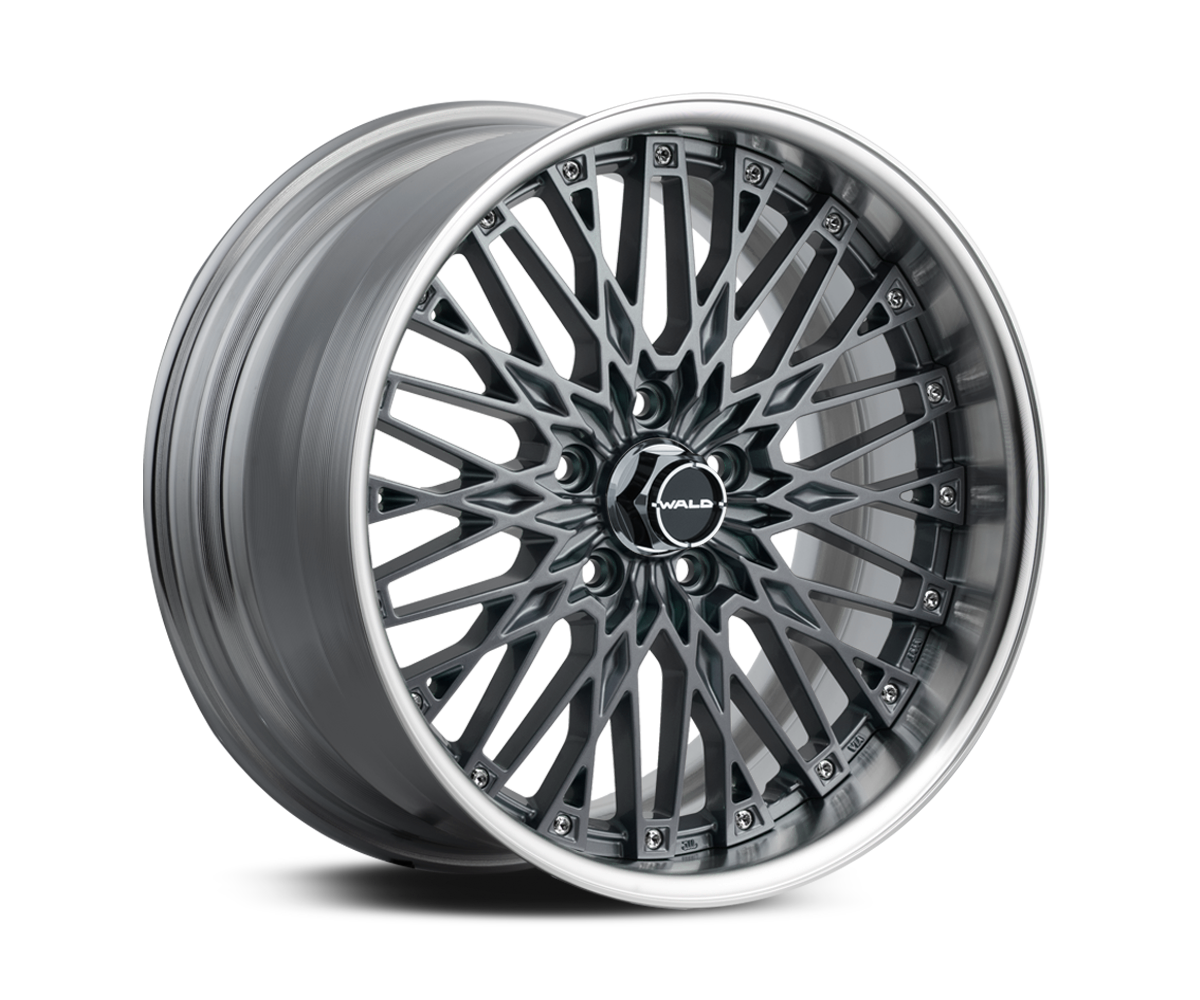

Titanium Silver | Cut Alumite Rim
2-Piece multi-piece assembled construction — Classic Mesh design
21 / 20 / 19 / 18 / 17 / 16 inch

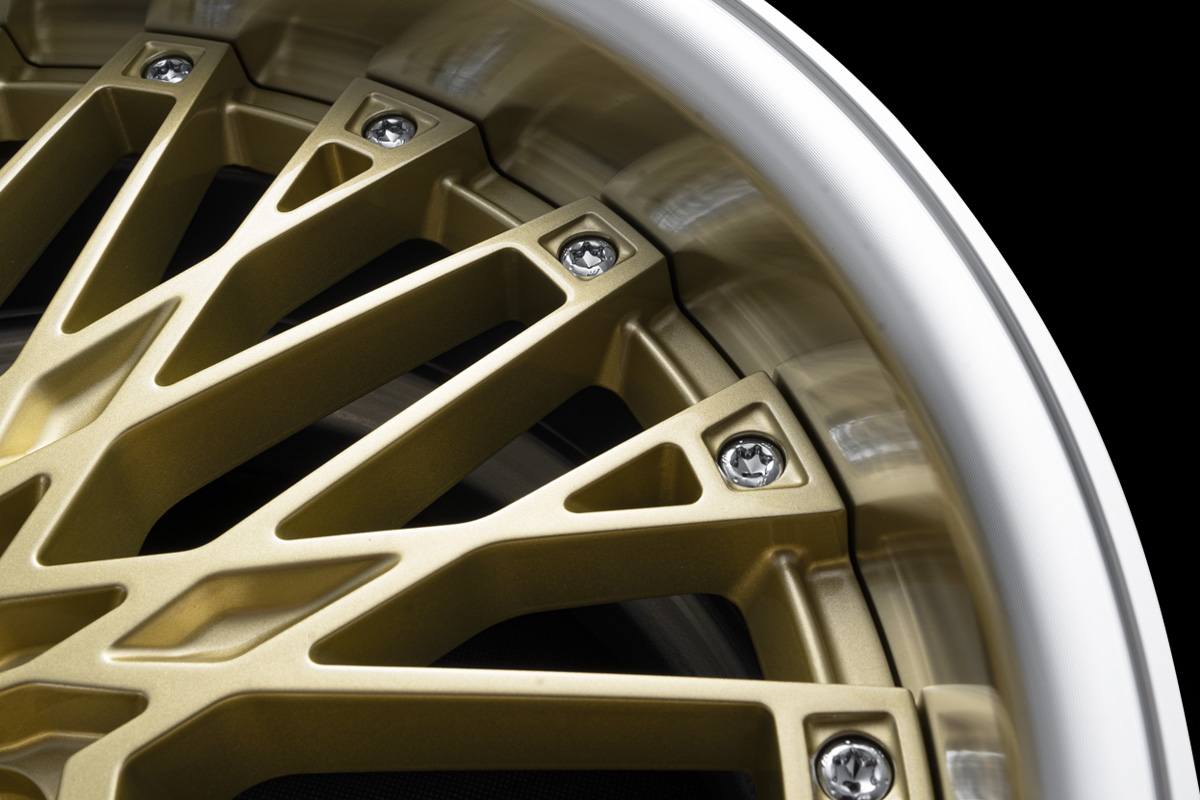

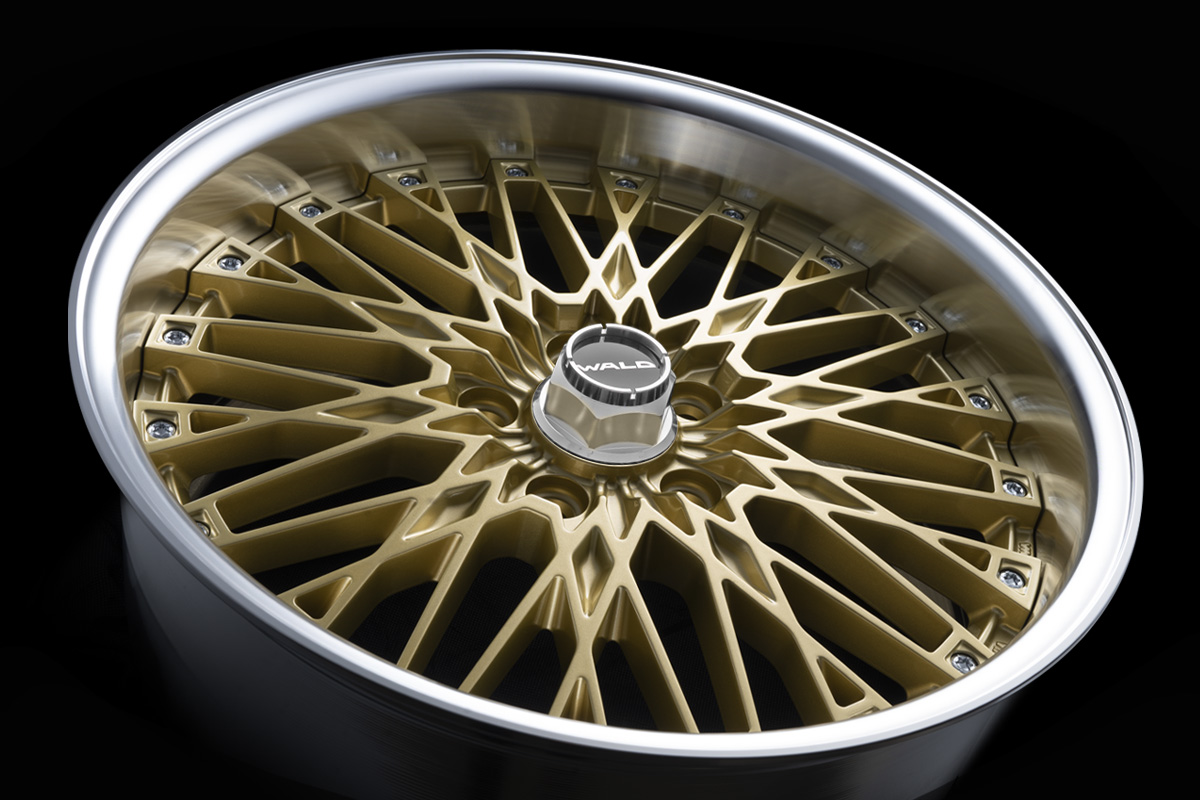

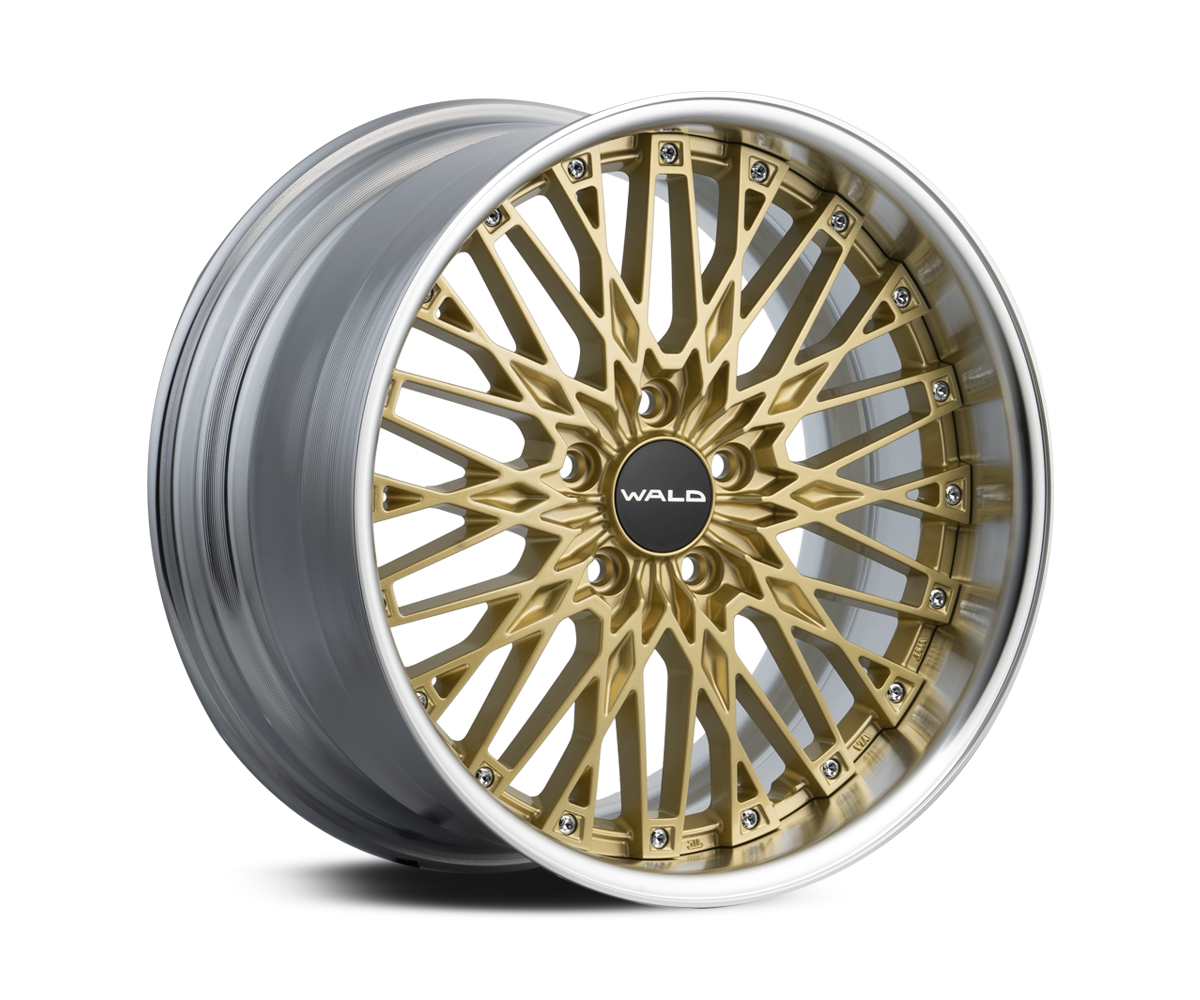

Gold | Cut Alumite Rim
2-Piece multi-piece assembled construction — Classic Mesh design
21 / 20 / 19 / 18 / 17 / 16 inch

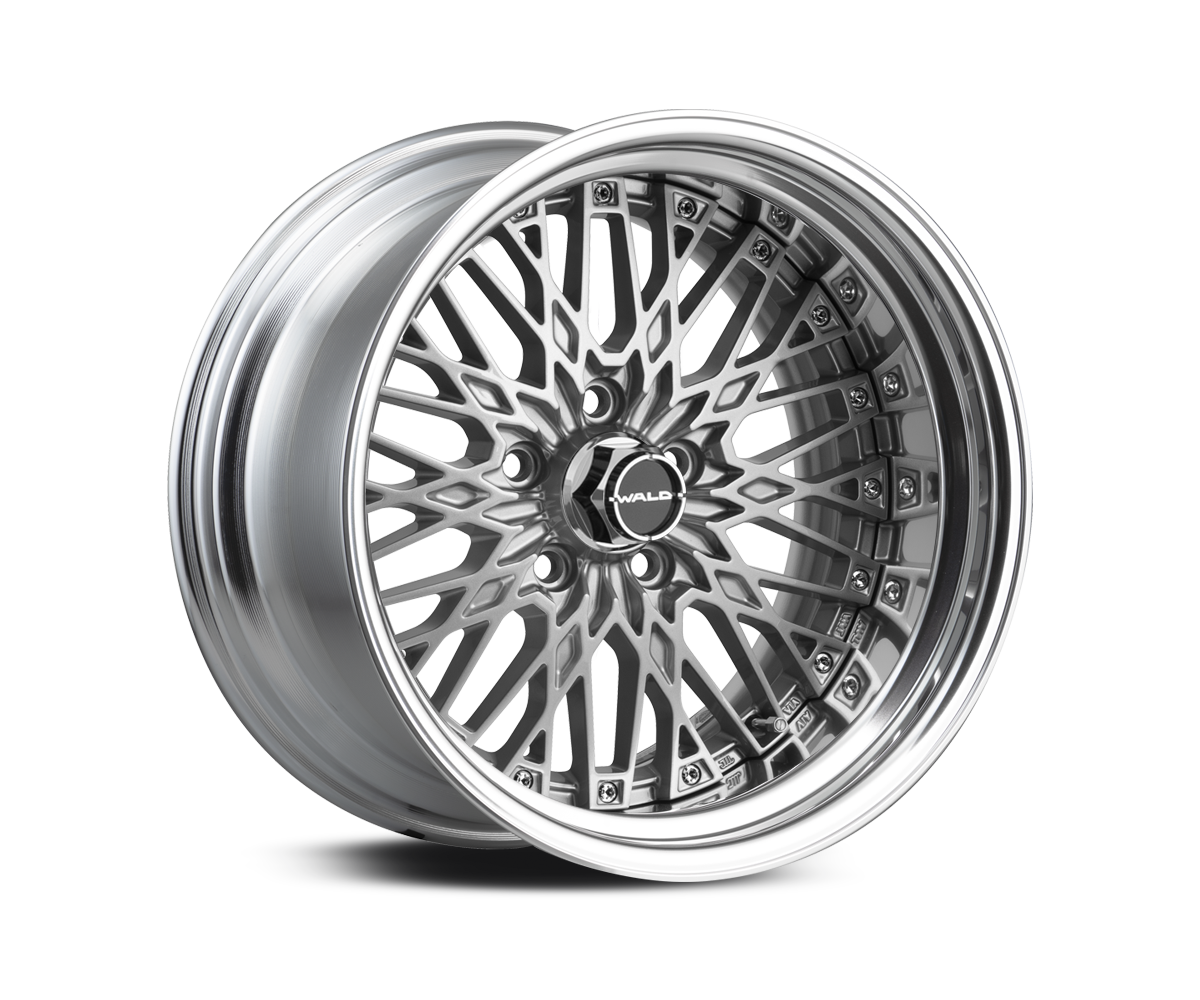

Silver | Alumite Rim
2-Piece multi-piece assembled construction — Classic Mesh design
21 / 20 / 19 / 18 / 17 / 16 inch

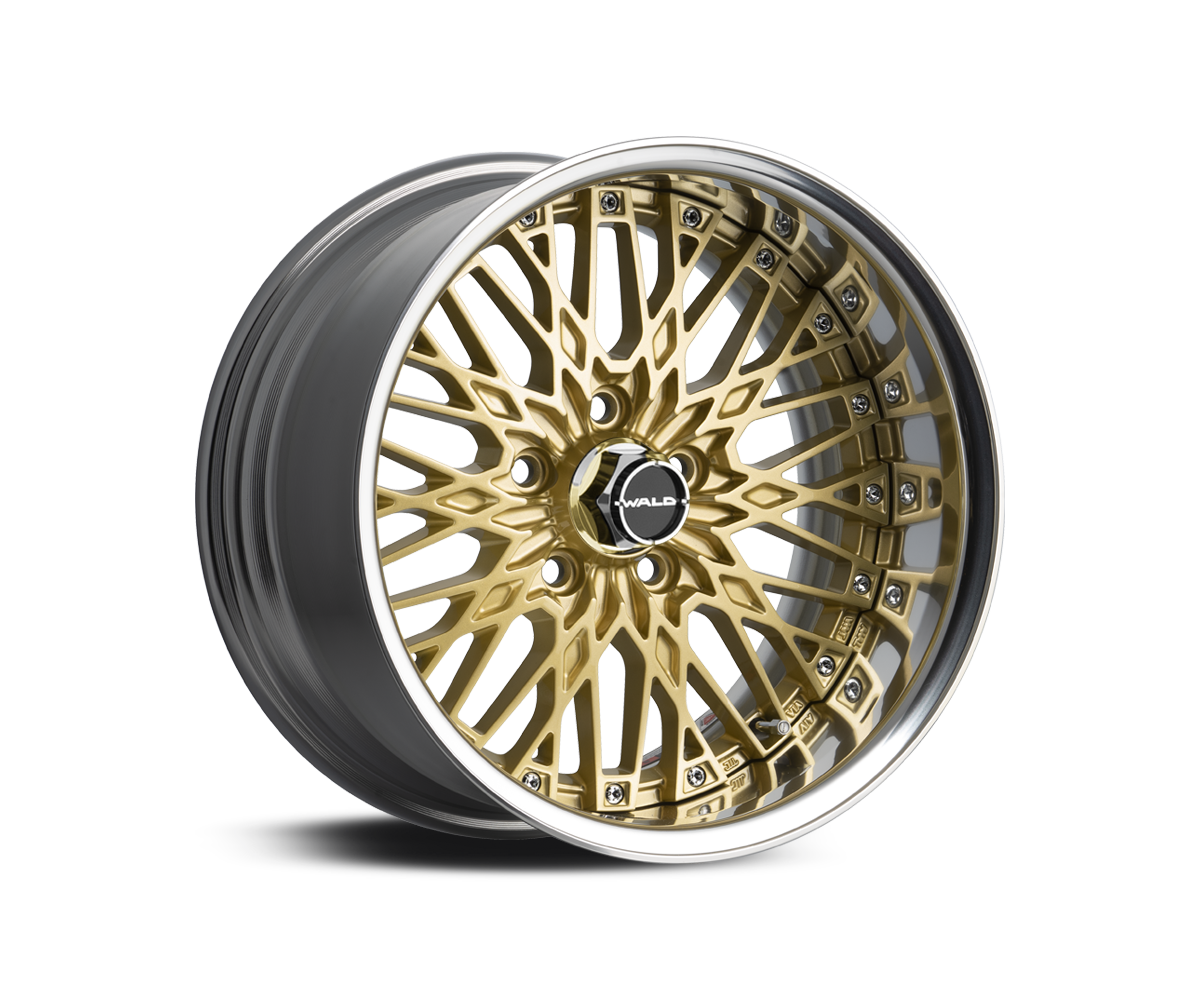

Gold | Alumite Rim
2-Piece multi-piece assembled construction — Classic Mesh design

Available sizes

21 × 8.5 – 22 × 12.5
Minimum to maximum width
20 × 8.0 – 20 × 12.5
Minimum to maximum width
19 × 8.0 – 20 × 12.5
Minimum to maximum width
18 × 7.0 – 18 × 12.5
Minimum to maximum width
17 × 6.0 – 17 × 10.5
Minimum to maximum width
16 × 5.5 – 16 × 9.0
Minimum to maximum width

Application / fitment

PCD	Centre bore
5/114.3	75φ
5/112	75φ
5/120	75φ
5/108	75φ
5/100	67.1φ
4/114.3	75φ — 17″ / 16″ application only
4/100	67.1φ — 17″ / 16″ application only

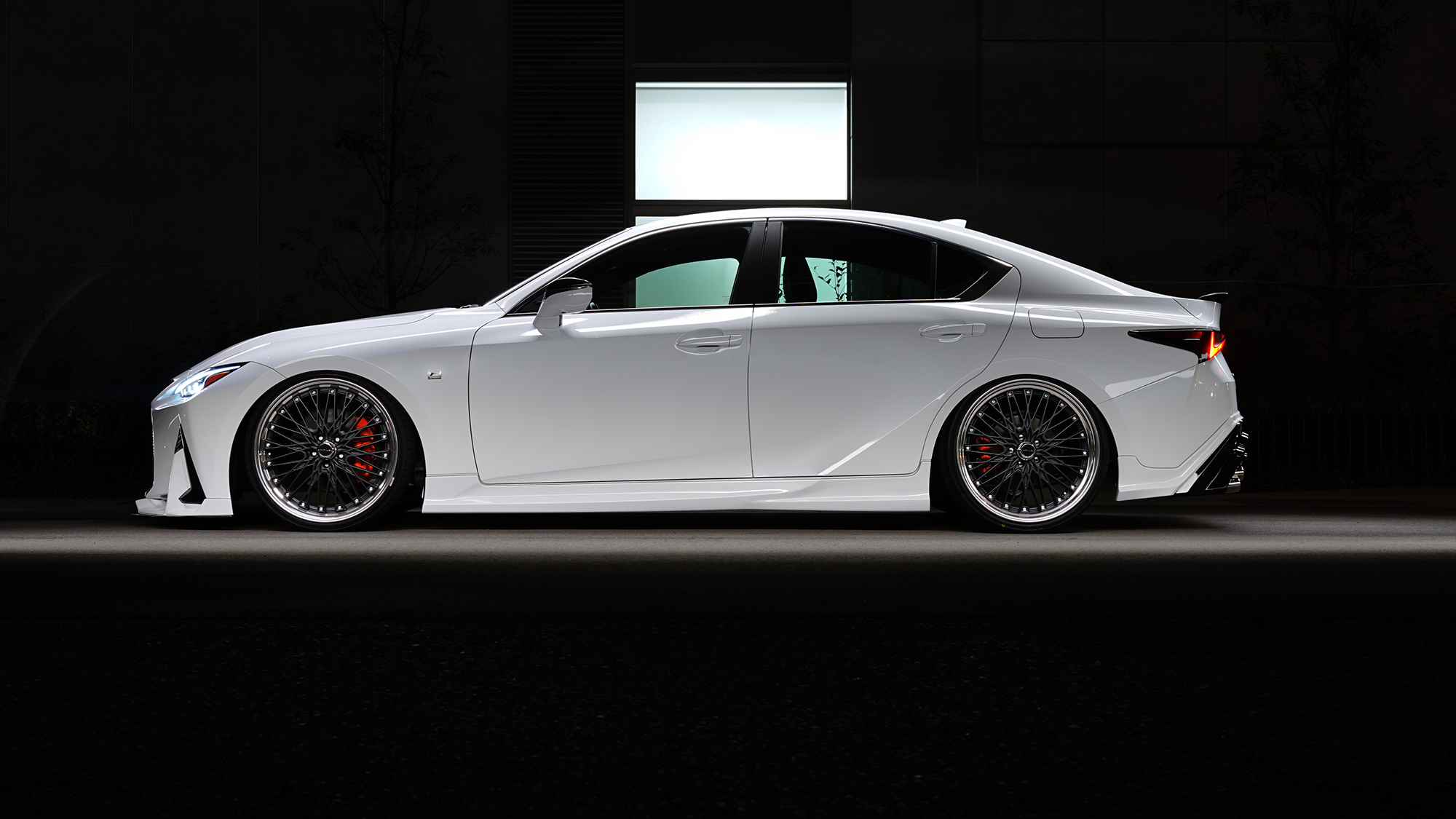

Rim configuration: 16″ and 18″ are built with the Reverse Rim; 17″ and 19″ are built with the Step Rim. Deep Rim setting: the CM12C can be assembled up to a 12.5J width and is suitable for over fender applications with the Deep Rim. Only the PCD and centre bore configurations listed above are confirmed — the 4/114.3 and 4/100 fitments are 17″ / 16″ application only. Please contact Premier Auto Design to confirm the exact diameter, width, finish, PCD and centre cap combination for your vehicle.
